| Product Overview |
Product Highlights
- Output size: A3
- Output Type: Colour
|
Recommended Uses
- Print Volume: High
- Recommended Usage: Large Workgroups
|
| Features |
| The simplicity and usability to fit in any working environment |
| Print from anywhere, anytime with the most advanced wireless, mobile and cloud technology |
| Built for steady performance, for workflow efficiency |
| Advanced security technology to protect important information |
| Innovation helping everyone to reach the full potential |
| Environmental contribution is always the top priority |
| |
The
simplicity and usability to fit in any working environment
The
9 inch operation panel
The
9 inch operation panel provides user friendly interface. There are 4 hard
menu keys at the bottom of the panel, combining it with on-screen soft menu
keys allows user to register for functions such as copy, scan/fax, preview
or soft numeric keypad.
The screen display function can be enlarged and screen display colour can be
reversed for ease of use.

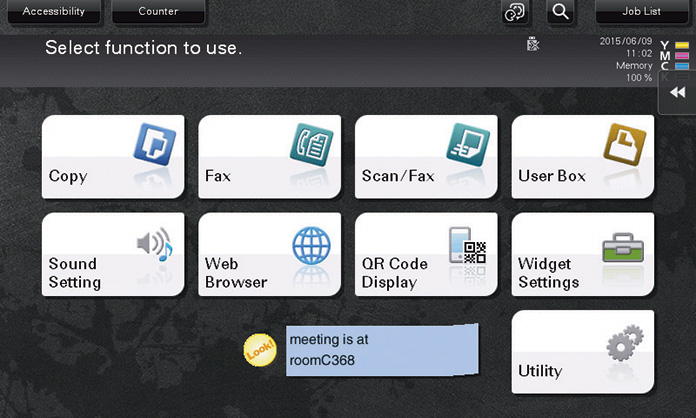

Widgets
function
The
new bizhub C368 series comes with embedded widget application where users
can install and execute within the MFP operation panel. Text boxes, icons or
GIF animations can be configured and used for internal communication,
messages and rules.
Standard
web browser
The
multi-touch UI in the operational panel can be used to display and print
webpage contents. Printing of portions of PDF files or maps directly from
the websites are more convenient now.
The
product design
The
bizhub C368 series adopts easy and intuitive INFO-Palette design with smart
user interface. You get the same user experience through seamless operation
across the PCs, tablets or smartphones.
Print
from anywhere, anytime with the most advanced wireless, mobile and cloud
technology
To
connect with Android devices
The
operation panel is equipped with newly embedded Mobile Touch Area to support
NFC (Near Field Communication) connection for Android*1 devices.
Pairing can be performed, through PageScope Mobile (PSM), by touching the
area with Android device. First select the files on PSM and then touch the
device to the operation panel to perform Print*2 or
scan*.
*1
NFC connection requires Android OS 4.4 or higher to be installed.
*2 Wireless LAN environment is required to perform touch to print and scan.
To
connect with iOS devices
For
the iOS devices, you can search and register nearby bizhub into the
PageScope Mobile (PSM)*3 via Bluetooth LE (BLE)*4 technology.
iOS devices can also be used to log-into bizhub via BLE connection. Selected
files on PSM can be printed*5 directly
or scan*5 files
to iOS devices.
*3
PageScope Mobile for iPhone/iPad version 5.0 or higher is required.
*4 Optional Device Connection I/F Kit EK-609 is required.
*5 Wireless LAN environment is required to perform print and scan.
Wireless
LAN (AP mode) connection image
Wireless
LAN (AP mode) support
Make
your bizhub wireless LAN Access Point*6 to
wirelessly connect mobile devices. Devices thus will not only able to
connect directly with bizhub but are also securely separated from exiting
LANs.
PageScope Mobile*3 will
enable more convenience as wireless set up can be completed between a mobile
device and bizhub by reading the QR code that is displayed on the machine
panel.
*6
Optional Upgrade Kit UK-212 is required.
* In AP mode (base unit), simultaneous connections can be made with up to 5
devices.
To
connect instantly without print drivers to the industry standard mobile
technologies
Apple’s
standard printing system is compatible with iOS 4.2 and Mac OS 10.7 or
later. A compatible printer on your wireless LAN can be used.
Wireless
printing technology established by Mopria Alliance. It allows you to print
from devices installed with Android 4.4 or later.
A
cloud print service provided by Google. You can print from any location via
the internet regardless of OS or device type.
*
Google Cloud Print Setup and Google account registration are required.
* Optional Upgrade Kit UK-211 is required.
-
Konica
Minolta Print Service
Print
directly to bizhub via a wireless LAN from all apps that supports
Android’s print function.
Konica
Minolta’s proprietary mobile print application allows usage of wide range
of bizhub functions such as duplex print, security print, staple and punch.
How
to use QR code
Use with your mobile device.
Access and download easily without typing the website address.
Built
for steady performance, for workflow efficiency

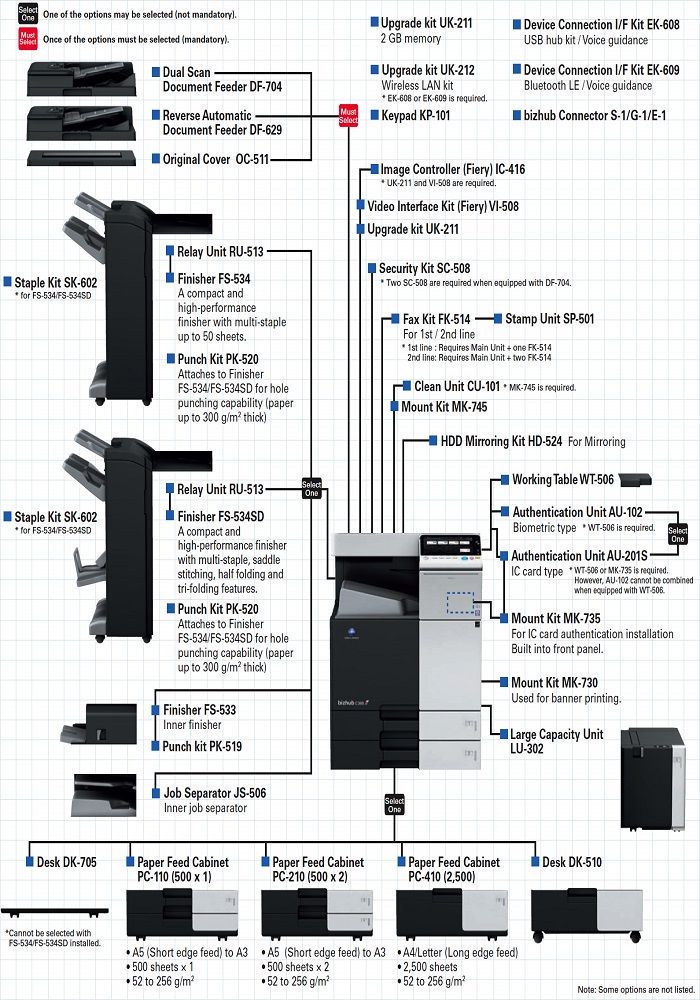

Plenty
of paper feed options
The
standard paper capacity of the MFP is 1,150 sheets. With the optional paper
feed options, the paper capacity can be increased up to 3,650 sheet. The
optional Large Capacity Unit will bring the maximum of 6,650*1 sheets
to reduce overall MFP downtime caused by paper replenishment.
*1
When optional Paper Feed Cabinet PC-410 and Large Capacity Unit LU-302 are
mounted.
Fiery
controller
Optional
Fiery Image Controller*2 for
graphics applications can produce professional and high-level printing
quality environment. The Fiery’s various settings can be configured by
using the MFP web browser.
*2
Optional Fiery Image Controller IC-416, Video Interface Kit VI-508 and
Upgrade Kit UK-211 are required.
Multifunction
finisher
The
optional finisher allows you to perform many high-level finishing such as
three sheets stacked tri-fold, stapling, punching, and saddle stitching.
User can produce internal documents more easily and professionally.
Emperon
printing system
Konica
Minolta’s proprietary Emperon unified printing system is equipped with
network printing functions as standard feature. It provides comfortable
print experience in any office network environment regardless of OS types.

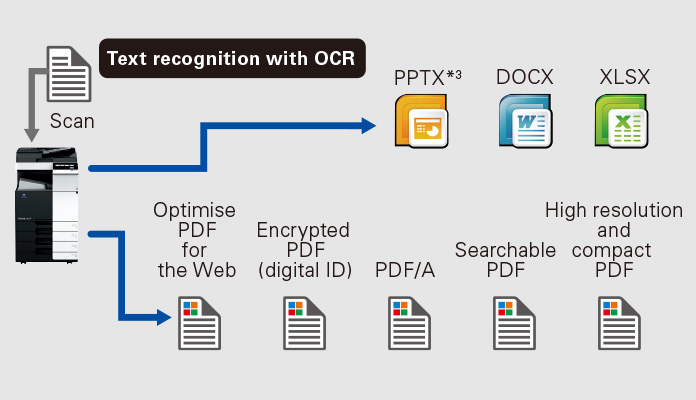

of Scan to PDF and Scan to OOXML
(when LK-110 v2 is mounted)
Documents
digitalisation
Paper
documents can be scanned and converted into PDF and OOXML file formats.
Choose a file format suitable for your work objective. To widen the
potential for documents secondary usage.
· OCR
processing enables text searching.
· Images
and text can be reused in applications such as Microsoft Office.
* Optional Upgrade Kit UK-211 is required.
*3 Although pptx conversion is a standard function of this machine, optional
i-Option LK-105 v4 or LK-110 v2, and Upgrade Kit UK-211 are required to use
OCR.
Advanced
security technology to protect important information.
Authentication
on the MFP main unit
User
can perform Authentication directly on the main unit. Access control can be
set up for functions like print, scan, copy and fax*1
*1
Optional Fax Kit FK-513 is required.
IC
card authentication
Users
can authenticate*2 with
various types of IC card*3.
The authentication method complies with SSFC (Shared Security Formats
Cooperation). Besides the IC Card, users can authenticate with Android
devices*4with
equipped NFC antenna.
*2
Optional Authentication Unit AU-201S is required.
*3 Compliant non-contact IC cards include FeliCa (IDm), SSFC, FCF, FCF
(campus), FeliCa Private, and MIFARE (UID).
*4 Requires Android 4.4 or later that supports HCE (Host Card Emulation) or
PageScope Mobile for Android v4.1 or later.
Biometric
authentication
Scans
the veins on the finger as the biometric data which offers very high-level
security and is easy to implement*4.
*4
Optional Biometric Authentication Unit AU-102 and Working Table WT-506 are
required.
HDD
mirroring
Supports
“Mirroring” which synchronizes the main HDD data and backup HDD data in
real time. In the event of main HDD failure, operation automatically
switches to the backup HDD which will drastically reduce the risk of data
loss.
Server-less
pull printing
With
server-less pull printing, print jobs sent by user can be printed from any
MFP in the same network.
*
A pull printing system consisting of a maximum of 10 MFPs can be created. It
is necessary that all corresponding MFPs be in the same network.
* Optional i-Option LK-114 and Upgrade Kit UK-211 are required to be
installed to each of the MFP.
TPM
(Trusted Platform Module)
TPM
(Trusted Platform Module) is a security chip which encrypts and decrypts
confidential data. The information is encrypted and stored in dedicated
storage area in the chip to avoid unauthorized reading.
Optional
i-Option LK-115 v2 is required.
Innovation
helping everyone to reach the full potential
Screen
display enlarge and colour reversal functions
For
better visibility now it is possible to enlarge the text on the buttons and
reverse the screen display colour while maintaining the same contrast ratio.

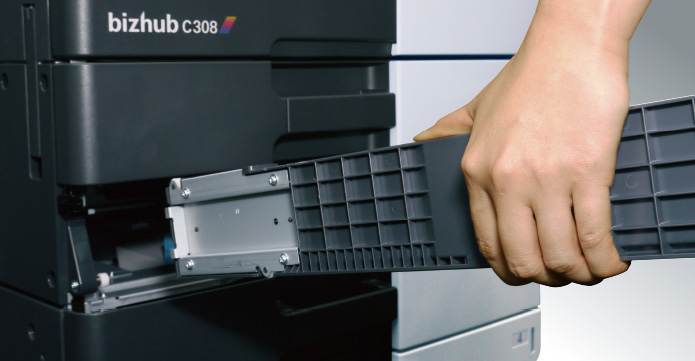

Detachable
paper cassette
Paper
cassette of the bizhub is detachable to easily remove the jammed paper that
has remained inside the MFP.
Environmental
contribution is always the top priority
Usage
of the recycled materials
Konica
Minolta has made further advances on its unique chemical processing
technology. It has also increased its use of recycled PC/PET and has raised
the PCR ratio*1 to
approximately 70%. This recycled material accounts for more than 25% of the
weight ratio of the total resin volume in the main unit. The ratio of
recycled materials in the surface area of the machine has increased to
approximately 78%.
*1
PCR (post-consumer recycling): the ratio of municipally recycled materials
used in the recycled materials
Top
class power consumption and TEC value in its class
The
MFP’s CPU power is set to turn off during sleep mode. This results in a
best-in-class 0.5 W power consumption ratio (during sleep mode). The TEC
value has also been reduced approximately by 5-18%. CO2 emission from the
MFP is drastically reduced.
Comparison
of TEC values (in Europe and other regions) of previous models (bizhub
C364e/C284e/C224e) and the bizhub C368 series.
*
Values for 220-230 V
* TEC values applied to the International Energy Star Program Version 2.0
Yearly CO2 emissions:
TEC value × 52 weeks × emission factor
(From the November, 2011 press release by Japan’s Ministry of the
Environment.)
|
System
Specification
Print
Specifications
|
bizhub
C368 |
bizhub
C308 |
bizhub
C258 |
| Type |
Embedded |
| CPU |
ARM
Cortex-A7 Dual-core 1.2GHz |
| Memory |
2
GB/4 GB |
| Print
Speed |
36
ppm |
30
ppm |
25
ppm |
| HDD |
250
GB (Shared with the copier) |
| Print
Resolution |
1,800
dpi (equivalent) x 600 dpi (at smoothing) or
1,200 dpi x 1,200 dpi (in 1,200 dpi mode)
|
| PDL |
PCL
6, PostScript 3 Emulation, XPS |
| Protocol |
TCP/IP,
IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, AppleTalk |
| Support
OS |
Windows
Vista*1 / 7*1 / 8*1 / 8.1*1 / 10*1
Windows Server 2008*1 / 2008 R2 / 2012 / 2012 R2
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11)
Linux |
| Fonts |
PCL |
80
Roman fonts |
| PS |
137
Roman Type1 fonts |
| Interface |
Ethernet
(10BASE-T/100BASE-TX/1000BASE-T), USB 1.1, USB 2.0, |
| IEEE
802.11 b/g/n*2 |
*1 Supports the 32-bit (x86) or 64-bit (x64) environment.
*2 Optional
Scanner
Specifications
| Type |
Full-Colour
Scanner |
| Interface |
Ethernet
(10BASE-T/100BASE-TX/1000BASE-T), IEEE 802.11 b/g/n*1 |
| Driver |
TWAIN
Driver, HDD TWAIN Driver |
| Protocol |
TCP/IP
(FTP, SMB, SMTP, WebDAV) (IPv4/IPv6) |
Scanning
Speed (Colour/B&W)
(300 dpi, A4, Simplex) |
80
opm*2 |
| Scanning
Size |
Max.
A3 (11″ × 17″) |
| Output
Format |
TIFF,
JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*1, docx*1),
Searchable PDF*1, PDF/A*1, Linearised PDF*1 |
| Scanning
Resolution |
Push |
200
dpi / 300 dpi / 400 dpi / 600 dpi |
| Pull |
100
dpi / 200 dpi / 300 dpi / 400 dpi / 600 dpi |
| Main
Functions |
Scan
to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB),
Network TWAIN, Scan to WebDAV, Scan to USB, Scan to Scan Server,
Scan to Web Service (WSD-Scan),
Device Profile for Web Services (DPWS) |
| Other
Functions |
Multi-Method
Send, Authentication at the time of E-Mail send (SMTP authentication,
POP before SMTP), S/MIME, Annotation |
*1 Optional
*2 When using the Reverse Automatic Document Feeder DF 628.
General
Specifications
| Type |
Desktop
Full Colour A3 Multifunctional Printer |
| Colour
Support |
Full
colour |
| Copy
Resolution |
Main:
600 dpi × Sub: 600 dpi |
| Gradation |
256 |
| Memory
Capacity (Std./Max.) |
2
GB/4 GB |
| HDD |
250
GB |
| Original
Type |
Sheets,
Books, Objects |
| Max.
Original Size |
A3
(11″ × 17″) |
| Output
Size |
Main
unit: SRA3*1, A3 to A5, |
| 12-1/4″
× 18″ (A3 wide (311.1 mm × 457.2 mm)), |
| 11″
× 17″ to 8-1/2″ × 11″, 5-1/2″ ×
8-1/2″, 8″ × 13″*2, 16K, 8K |
| Bypass
Tray: SRA3, A3 to A5, B6*3, A6*3, |
| 12″
× 18″ (A3 wide (311.1 mm × 457.2 mm)), 11″ × 17″
to 5-1/2″ × 8-1/2″, |
| 8″
× 13″ *4, 16K, 8K, Postcard (A6 (4″ × 6″ Card)),
Envelope*5, |
| Label
sheet, Tab paper, Banner paper (Width: 210 mm to 297 mm |
| (8-1/4″
to 11-11/16″), Length: 457 mm to 1,200 mm (18″ to
47-1/4″))*6 |
Warm-Up
Time*7
(23°C, std. voltage)
* The time required to start printing when both the main power and
sub-power switches are turned from OFF to ON. |
Colour/B&W:
20 sec. or less |
| *
The time required to star t printing when the main power switch is ON
and the sub-power switch is turned from OFF to ON. |
Colour/B&W:
20 sec. or less |
Colour/B&W:
18 sec. or less |
| Copy
Out Time*8 |
Colour |
6.9
sec. or less |
7.3
sec. or less |
7.5
sec. or less |
| B/W |
5.3
sec. or less |
5.6
sec. or less |
6.1
sec. or less |
| Copy
Speed (Colour/B&W, A4) |
36
ppm |
30
ppm |
625
ppm |
| Copy
Magnification |
Fixed
Same Magnification |
1:
1±0.5% or less |
| Scaling
Up |
1:
1.154/1.224/1.414/2.000 |
| Scaling
Down |
1:
0.866/0.816/0.707/0.500 |
| Preset |
3
types |
| Zoom |
25
to 400% (in 0.1% increments) |
| Lengthwise
Crosswise Individual Settings |
25
to 400% (in 0.1% increments) |
| Paper
Capacity(80 g/m2) |
Tray
1 |
500
sheets (up to B4) |
| Tray
2 |
500
sheets (up to A3) |
| Multiple
Bypass Tray |
150
sheets (up to SRA3) |
| Max.
Paper Capacity (80 g/m2)*9 |
6,650
sheets |
| Paper
Weight |
Tray
1 |
52
to 256 g/m2 |
| Multiple
Bypass Tray |
60
to 300 g/m2 |
| Multiple
Copy |
1
to 9,999 sheets |
| Auto
Duplex |
Paper
Size |
SRA3,
A3 to A5, B6*3, A6*3, |
| 12-1/4″
× 18″ (A3 wide (311.1 mm × 457.2 mm)), 11″ ×
17″*3 to |
| 5-1/2″
× 8-1/2″*3, 7-1/4″ × 10-1/2″, 8″ ×
13″, 16K, 8K, |
| Postcard
(A6 (4″ × 6″ Card)) |
| Paper
Weight |
52
to 256 g/m2 |
| Power
Requirements |
AC220
to 240 V 8.0 A (50/60 Hz) |
| Max.
Power Consumption |
1.5
kW or less |
| Dimensions
[W] × [D] × [H] |
615
× 685 × 779 mm (24-3/16″ × 27-15/16″ ×
30-11/16″) |
| Weight |
Approx.
85 kg (187-3/8 lb) |
| Space
Requirements [W] × [D]*10 |
937
× 1,214 mm (36-7/8″ × 47-13/16″) |
*1 SRA3 paper can be used in Tray2.
*2 There are four types of foolscap: 8-1/2″ × 13-1/2″*2,
8-1/2″ × 13″*22, 8-1/4″ × 13″*2, and 8″ ×
13″*2.
Any one of these sizes is selectable. For details, contact your service
representative.
*3 Short edge feed
*4 There are six types of foolscap: 8-1/2″ × 13-1/2″*3, 220 mm
× 330 mm*3, 8-1/2″ × 13″*3, 8-1/4″ × 13″*3,
8-1/8″ × 13-1/4″*3, and 8″ × 13″*3.
Any one of these sizes is selectable. For details, contact your service
representative.
*5 Wrinkles or printing errors may occur due to the type, storage or
environment that exists when envelope printing is carried out.
*6 Printing on banner paper can only be performed from a PC.
*7 May vary depending on the operating environment and usage.
*8 A4 long edge feed full size/using the first tray/scanning from the
original glass surface.
*9 With options installed.
*10 Without options, with paper trays pulled out, and multiple bypass tray,
auxiliary tray and ADF opened.
Internet
Fax
| Protocol |
TX:
SMTP, RX: POP3, TCP/IP Simple mode |
| Connection
Mode |
Full-Mode |
| Sending
Paper Size |
A3,
B4, A4 |
| Recording
Paper Size |
Max.
A3 |
| Resolution |
B/W:
200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi
Colour: 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi |
| Interface |
Ethernet
(10BASE-T/100BASE-TX/1000BASE-T) |
| Colour |
Support
Colour Internet Fax |
| Format |
B/W:
TIFF-F
Colour: TIFF (Conforms to RFC3949 Profile-C) |
Fax
Kit FK-514 (Optional)
| Communication |
Super
G3 |
| Compatible
Lines |
Public
Switch Telephone Network, Private Branch Exchange,
Fax Communication Line |
| Line
Density |
Ultra
Fine: 600 dpi 600 dpi
Super Fine: 16 dot/mm 15.4 line/mm, 400 dpi 400 dpi
Fine: 8 dot/mm 7.7 line/mm, 200 dpi 200 dpi
Normal: 8 dot/mm 3.85 line/mm |
| Modem
Speed |
2.4
to 33.6 kbps |
| Compression |
MH/MR/MMR/JBIG |
| Sending
Paper Size |
Max.
A3 (Long Length Support: Max.1,000 mm) |
| Recording
Paper Size |
Max.
A3 (Long Length Max. 1,000 mm — following the page division —) |
| Transmission
Speed |
Less
than 2 sec. (A4, V.34, 33.6 kbps, JBIG) |
| Memory |
Shared
with the copier |
| Number
of Abbr. Dials |
2,000 |
| Number
of Program Dials |
400 |
| Number
of Group Dials |
100 |
| Sequential
Multiple Station Transmission |
Max.
600 |
IP
Address Fax (Optional)*
Optional Fax Kit FK-514 is required.
| Protocol
Transmission |
TCP/IP,
SMTP |
| Sending
Paper Size |
A3,
B4, A4 |
| Resolution |
200
× 200 dpi, 400 × 400 dpi, 600 × 600 dpi |
| Format |
B/W:
TIFF-F, TIFF-S
Colour: TIFF, PDF |
Fiery
Image Controller IC-416 (Optional)
*
Optional Upgrade Kit UK-211 and Video Interface Kit VI-508 is required.
| Type |
Embedded |
| CPU |
Intel
Pentium G850 2.9GHz |
| Memory |
2
GB |
| HDD |
500
GB |
| Print
Speed |
1,800
dpi (equivalent) × 600 dpi (at smoothing) or
1,200 dpi × 1,200 dpi (in 1,200 dpi mode) |
| Print
Resolution |
TCP |
| PDL |
Adobe
PostScript 3 |
| Protocol |
Ethernet
(Apple Talk, TCP/IP), HTTP/HTTPS, SSL/TLS for HTTPS,
SNMP v3, SMB, Port9100 (Bi-Directional), IPP, LDAP, IPV6 |
| Support
OS |
Windows
Vista*1 /
7*1 /
8*1 /
8.1*1 /
10*1
Windows Server 2008*1 /
2008 R2 / 2012
Mac OS X (10.6 / 10.7 / 10.8 / 10.9 / 10.10 / 10.11) |
| Fonts |
Adobe
PS 138 Roman fonts, Agfa PCL 80 Roman fonts and 1 bitmap font,
Additional PCL 35 fonts, Euro Currency Resident Font |
| Interface |
Ethernet
(10BASE-T/100BASE-TX/1000BASE-T) |
*1 Supports the 32-bit (x86) or 64-bit (x64) environment.
|
| |
System Options
|
|
| |
| |
|
|
|
Digital Copier, Photocopier Machines, Konica Minolta Colour Copier, Printer On Hiring, Printer On Rental Basis, Photocopiers Machine, XEROX Machine Gujarat , XEROX Machine on Rent , Colour Copier Machine, CMYK Production Printing Machine, Copiers, Color Copiers, Colour Production Print Systems, Laser Printers, Photocopiers Machine, digital Colour Copier, digital copier, colour Xerox machine, colour photocopiers, digital xerox machine, digital copier,sales and service of photocopier Machine, sales and service of xerox machine in Vapi, Valsad, Daman, Silvassa, Umargam, Navsari, Gujarat, India.
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
PATEL AUTOMATION |
110, Vardhaman Complex, Nr. Sahara Market, Silvassa Road, Vapi 396195, Gujarat, INDIA.
Tel : 0260 -2424634 / 6544634, Cell : 09825378070, E-mail : sales@patelautomationvapi.com |
|
 |
 |
 |
|
| |
|
|
|
|
|
.jpg)
