| Product Overview |
Product Highlights
- Output size: A3
- Output Type: Monochrome
|
Recommended Uses
- Print Volume: Medium
- Recommended Usage: Low and Medium workgroups
|
| Features |
| Enhance your work efficiency by the simple operability |
| Advanced security features to protect valuable information |
| Cost and environmental friendliness are always the first priority |
| |
The simplicity and usability to fit in any working environment |
Enhance
your work efficiency by the simple operability

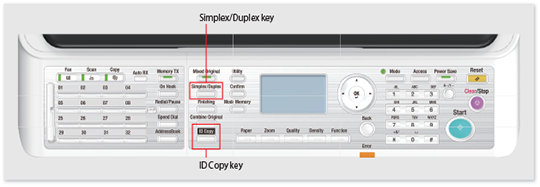

Special
one touch buttons
Achieve
simple operability through one touch buttons for frequently used functions
such as ID copy, Simplex/Duplex setting, scan to USB, and Automatic paper
size detection through optional RADF.

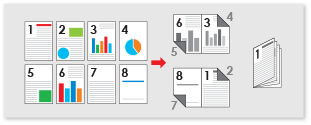

Booklet
print
A
convenient print feature to collate multiple pages into one booklet.

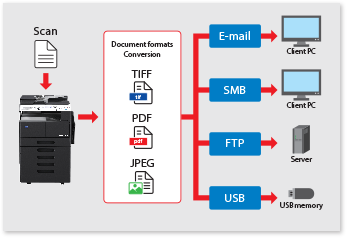

Colour
scan
Colour
documents can be digitised into colour files. Fast colour scan at 20ppm
(150dpi)*,
never slows work down. The supported scan file formats are TIFF, PDF, and
JPEG.
*1
This is the speed when equipped with the Reverse Automatic Document feeder
DF-625.
Cost
and environmental friendliness are always the first priority

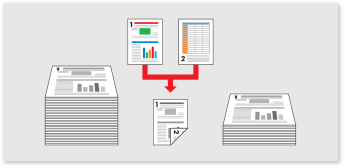

Double-sided
print and double-sided scan
Print
two pages on a single paper back to back (double sided), to reduce paper
consumption by half.(optional)

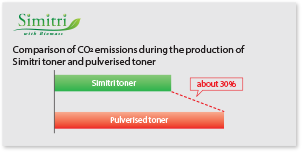

Simitri
toner with biomass –For High Image Quality
Konica
Minolta’s own Polymerized Toner technology achieves high image quality.
The toner fuses at low temperature to bring the overall reduction of power
consumption and Co2 emission,
and saving TCO, Co2emission
in the production process can also be greatly reduced, compared to
pulverised toner.
Advanced
security features to protect valuable information

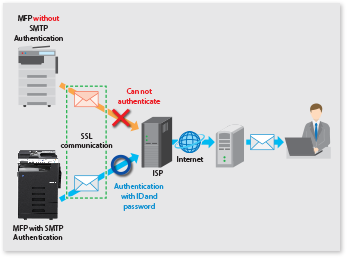

SMTP
authentication
To
support SMTP authentication which permits sending e-mail to users authenti-
cated by the SMTP server. E-mail servers and ISPs (Internet Service
Providers) etc. which are set for SMTP authentication can be used.
Connection to an SMTP server allows SSL communication, so E-mail can be sent
in a security-conscious state. This is suitable for small offices and
other situations without a private E-mail server.
|
Specifications
Printer
Functions (Standard: GDI Image Controller)
| Type |
Embedded |
| Print Speed |
A4 |
bizhub 226: 22 ppm, bizhub 206: 20 ppm |
| Letter |
bizhub 226: 21 ppm, bizhub 206: 19 ppm |
| Resolution |
Main: 600 dpi × Sub: 600 dpi |
| Memory Size |
128 MB standard |
| Supported OS |
Server |
Windows Server 2008*/ 2008 R2 (×64) /2012 (×64) / 2012 R2 (×64)
* Supports the 32-bit (×86) or 64-bit (×64) environment. |
| Client |
Windows Vista* / 7* / 8* / 8.1*
* Support the 32-bit (×86) or 64-bit (×64) environment.
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) ×86
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) AMD64/Intel64
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) ×86
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) AMD64/ Intel64
|
| Interface |
Standard: USB2.0 |
| Ethernet 10Base-T/100Base-TX (Option card: NC-504) |
| Protocols |
|
TCP/IP (with Network Interface Card NC-504) |
Printer Functions (Optional: PCL Controller with NIC)
| Type |
PCL controller incl. network interface card |
| Print Speed |
A4 |
bizhub 226: 22 ppm, bizhub 206: 20 ppm |
| Letter |
bizhub 226: 21 ppm, bizhub 206: 19 ppm |
| Resolution |
Main: 1,200 dpi (equivalent) or 600 dpi × Sub: 600 dpi |
| Page description language |
PCL6/5e |
| Supported OS |
Server |
Windows Server 2008*/ 2008 R2 (×64) /2012 (×64) / 2012 R2 (×64)
* Supports the 32-bit (×86) or 64-bit (×64) environment. |
| Client |
Windows Vista* / 7* / 8* / 8.1*
* Support the 32-bit (×86) or 64-bit (×64) environment.
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) ×86
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) AMD64/Intel64
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) ×86
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) AMD64/ Intel64
|
| Interface |
Standard: USB2.0 |
| Ethernet 10Base-T/100Base-TX |
| Protocols |
TCP/IP |
*Option Panel MK-749 is required.
Scanner
Functions
| Type |
Full-Colour scanner |
| Scanning size |
Standard: Max. A3 or 11" × 17"
DF-625 (Optional ADF): Max. A3 or 11" × 17" |
| Interface |
Ethernet 10Base-T/100Base-TX (Option card: IC-209 or NC-504)
USB2.0 (Standard)
USB2.0 Host |
| Driver |
TWAIN driver |
Scanning speed
(A4, Simplex) *1 |
TWAIN |
B/W: 26 opm, Grayscale: 23 opm, Colour: 16 opm (150 dpi)
B/W: 25 opm, Grayscale: 21 opm, Colour: 7 opm (300 dpi)
B/W: 15 opm (600 dpi) |
| Network scan *2 |
B/W: 46 opm, Grayscale: 38 opm, Colour: 20 opm (150 dpi)
B/W: 46 opm, Grayscale: 16 opm, Colour: 8 opm (300 dpi)
B/W: 23 opm (600 dpi) |
| Scanning size |
Max. A3 or 11" × 17" |
| Main function |
TWAIN |
Real time mode (pull) |
| Network scan *2 |
Scan to FTP, Scan to PC (SMB), Scan to E-Mail,
Network TWAIN |
| Data format |
|
TIFF, PDF, JPEG |
*1 When using the Reverse Automatic Document Feeder DF-625.
*2 Option Card IC-209 or NC-504 and Option Panel MK-749 are required
bizhub
226/206 Copier / General Specifications
| Type |
Desktop Printer / Copier / Scanner |
| Copy resolution |
Main: 600 dpi × Sub: 600 dpi |
| Gradation |
256 |
| Memory size |
128 MB standard (shared) |
| Original type |
Sheet, book, three-dimensional objects (max. 2 kg) |
| Max. original size |
A3 or 11" × 17" |
| Output size |
Main unit (Universal paper feed tray): Width: 90 mm to 297 mm (A3),
Length: 139.5 mm (5.5") to 431.8 mm (17")
Multi Bypass Tray (MB-505): Width: 90 mm to 297 mm (A3),
Length: 139.5 mm (5.5") to 431.8 mm (17")
Additional Tray (PF-507): Width: 182 mm (B5) to 297 mm (A3),
Length: 182 mm (B5) to 431.8 mm (17") |
| Warm-Up Time *1 (23°C, sth. voltage) |
15 sec. or less |
| First Copy Out Time *2 |
6.5 sec. or less |
| Copy speed (A4/
Letter crosswise) |
Simplex |
bizhub 226: 22 ppm, bizhub 206: 20 ppm |
| Duplex |
bizhub 226: 15.8 ppm, bizhub 206: 15.2 ppm |
| Copy magnification |
Fixed
ratio |
Metric |
0.25/0.50/0.70/0.81/1.00/1.15/1.41/2.00/4.00 |
| Inch |
0.25/0.50/0.64/0.78/1.00/1.21/1.29/2.00/4.00 |
Zoom
ratio set by
Up/Down key |
25%
to 400%
Adjustable in 0.01 steps |
| Paper
capacity (64 g/m2) |
Main unit (Universal paper feed tray): 250 sheets (up to A3)
Multi Bypass Tray: 100 sheets (up to A3)
Additional Tray (PF-507) : 250 sheets (up to A3) |
| Max. paper capacity (64 g/m2) |
1,350 sheets |
| Paper weight |
Main unit/
Multi Bypass Tray |
64 g/m2 - 157 g/m2 |
| Additional Tray (PF-507) |
64 g/m2 –
90 /m2 |
| Multi copy setting |
1-999 pages |
| Max. power consumption |
1,300 W |
| Dimensions [W] × [D] × [H] |
607 × 570 × 458 mm |
| Weight |
Approx. 28.2 kg
(excluding TC/Developer) |
| Application software |
PageScope Net Care Device Manager & Plug-in
LSU (Local Setting Utility) |
*1 The time required to start printing when then main power switch is turned
from OFF to ON.
*2 A4 long edge feed full size/using the first tray/scanning from the original
glass surface.
Fax
Functions (Optional)
| Fax Kit |
FK-510 |
| Communication |
G3 |
| Modem speed |
2.4 kbps - 33.6 kbps |
| Compression |
MH, MR, MMR, JBIG |
| Transmission speed |
Approx. 3 sec. (A4, V.34, 33.6 kbps, JBIG) |
| Sending paper size |
Scanner: Max. A3
Optional DF-625: Max. (W × L) 297 × 1,000 mm |
| Recording paper size |
Max. A3 (Max 1,000 mm, printed according page partition setting) |
| Line density |
8 dot/mm x 3.85 line/mm, 8 dot/mm x 7.7 line/mm
8 dot/mm x 15.4 line/mm, 16 dot/mm x 15.4 line/mm |
| Number of Abbreviated.Dial |
250 |
| Number of One Touch.Dial |
32 |
| Number of Program dials |
4 |
| Sequential multiple station transmission |
Max. 255 |
| Driver |
PC-FAX driver |
*Option Panel MK-749 is required.
Reverse
Automatic Document Feeder (Optional)
| Applied models |
DF-625 |
| Type |
Circulatory duplex system |
| Support paper size |
Max. A3 or 11" × 17"
(Fax mode: Max. 1,000 mm) |
| Mixed size |
Support |
| Support paper weight |
35 to 128 g/m2 (Simplex),
50 to 128 g/m2 (Duplex, Mixed Original) |
| Paper capacity |
Max. 70 sheets (80 g/m2) |
| Productivity (A4 portrait, Simplex) *At copy |
bizhub 226: 22 ppm, bizhub 206: 20 ppm |
| Power requirements |
Supplied from the MFP main body |
| Dimensions [W] × [D] × [H] |
546 × 486 × 80 mm |
| Weight |
5.3 kg |
|

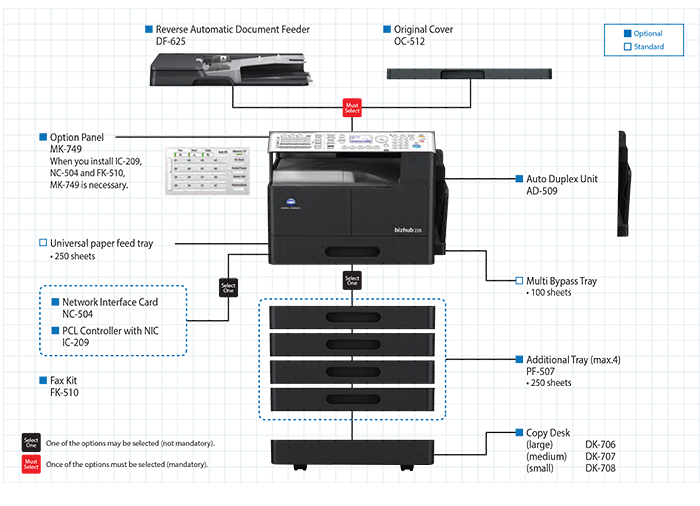

System
Options
|
Space
Requirement
|
| |
|
|
|
