| Overview |
| A smarter work style |
| User interface designed with the user in mind |
| The bizhub 554e series adopts the INFO-Palette design smart user interface, providing the same user experience through seamless operation even from PCs, tablets and smartphones. The user interface further enhances ease of use with intuitive mobile device-like tap, flick & pinch operation. |
|
|
| |
| Customisable user-friendly control panel |
| The bizhub 554e series control panel’s shortcut and function keys can be customised to limit the use of functions and simplify operations. Up to 23 shortcut keys can be set in the main menu for quick and easy access to frequently used functions. Function key displays in each mode can also be changed according to department or user. |
|
| |
| Soft numeric keypad for a smarter look and smarter operation |
| The “soft numeric keypad” lets users call the keypad on the screen only when required. Numbers can be entered with smooth touch operation. |
|
|
| |
| Powerful document solutions |
| Digitise hardcopies for more effective use of documents |
| The bizhub 554e series is standard equipped with a high performance colour scanner. Paper documents can be scanned and converted to various PDF files or frequently used Office OpenXML format files for a wider range of uses. In addition, OCR processing converts hardcopy text into files with digitised text. |
 |
|
|
|
| |
Leverage cloud services with bizhub Connector
bizhub Connector apps*1 can be registered to the main unit to access cloud services*2 and SharePoint 2007/2010 corporate servers directly from the control panel.
*1 Optional Upgrade Kit UK-204 and i-Option LK-101 v3 are required.
*2 Google Drive, Gmail, Evernote |
 |
 |
|
PageScope Mobile for intuitive mobile device operation
Print documents and images directly from and receive scanned data with mobile devices such as smartphones or tablets with the PageScope Mobile for iPhone/iPad and for Android apps (free-of-charge). Cloud services*3 can also be accessed for sharing information and for a wider range of other uses.
*3 Usable cloud services as of 1 September 2013 are as follows:
Google Drive, DropBox and Evernote. |
 |
|
|

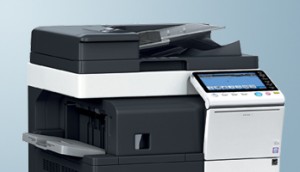

| Max. 160 opm high-speed colour scanning |
| The bizhub 554e and 454e are standard equipped with an ADF that delivers high-speed colour scanning of 80 opm for simplex and 160 opm for duplex scanning. This ADF is also optionally available for the bizhub 364e/284e/224e. |
|
|
| Choose your finish and set-up |
 |
Optional Finishers FS-534 and FS-535*4 provide a maximum capacity for 3,000 A4 sheets. The compact Inner Finisher FS-533 is designed to boost productivity without additional footprint, and can be equipped with a hole punch kit. The main unit can also be installed in a variety of spaces including on desktops or on the floor when combined with the paper feed cabinets.
*4 Available only for bizhub 554e. |
|
| Flexibility to match every office environment |
| Prevent information leaks with flexible user authentication |
 |

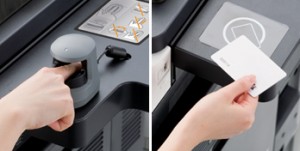

Protect valuable information without sacrificing convenience with a variety of authentication systems including the server-free MFP authentication, IC card authentication using employee IDs and the sure-safe biometric finger vein authentication. |
|
| ISO 15408 EAL3 (IEEE 2600.1 Compliant)*5 |
 |
The bizhub 554e series achieves an unparalleled level of security by complying with IEEE 2600.1 international standard for MFP and printer information security.
*5 Under evaluation |
|

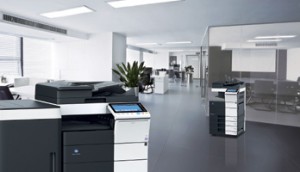

| Optimal device placement for better TCO and environmental performanc |
 |
Konica Minolta’s Optimised Print Services (OPS) promotes greater business efficiency through optimal device placement and reduced TCO. Optimally placing more eco-conscious devices also reduces power costs. |
|
| Cost-effective and earth-conscious in almost every way |
| Low power consumption even during use |
 |
The bizhub 554e series easily clears the new Energy Star standard TEC values. The thoroughly energy-saving design also reduces TCO. |
|
| 1-watt power consumption in Sleep mode |
To help reduce environmental impact and TCO even further, the CPU is switched off during Sleep mode resulting in power consumption of a mere 1 watt. |
|
| Made from more environmentally considerate materials |
The bizhub 554e series promotes corporate environmental conservation activities with a low environmental impact design. Recycled materials*6 are effectively employed for approximately 50 percent of the main unit’s surface area, including recycled PC/PET and recycled PC/ABS in 21 locations and biomass plastic.
*6 Includes a mixture of PCR (Post Consumer Recycled) materials recovered and recycled from consumers. |
|
|
|
| |
| Specifications |
| General Specifications |
|
bizhub 554e |
bizhub 454e |
bizhub 364e |
bizhub 284e |
bizhub 224e |
| Type |
Desktop Printer / Copier / Scanner |
| Resolution |
Scan |
Main: 600dpi × Sub: 600dpi |
| Print |
1,800 dpi (equivalent) × 600 dpi |
| Gradation |
256 |
| Memory Capacity (Std./Max.) |
2 GB/4 GB |
| HDD |
250 GB |
| Original Type |
Sheets, Books, Objects |
| Max. Original Size |
A3 (11″ × 17″) |
| Output Size |
SRA3 to A5, B6S1, A6S1 Thick paper, Foolscap2 (8-1/2″ × 13-1/2″, 200 mm × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, 8″ × 13″), 8K, 16K, Long Length Paper (210 × 457.3 mm to 297 × 1,200 mm) |
| Image Loss |
Max. 4.2 mm or less for top edge (5 mm for thin paper),Max. 3.0 mm or less for bottom edge,Max. 3.0 mm or less for right/left edges* A loss of 4.2 mm each during printing. |
| Warm-Up Time3 (23°C, std. voltage)*The time required to start printing when both the main power and sub-power switches are turned from OFF to ON. |
22 sec. or less |
25 sec. or less |
20 sec. or less |
| *The time required to start printing when the main power switch is ON and the sub-power switch is turned from OFF to ON. |
22 sec. or less |
25 sec. or less |
20 sec. or less |
18 sec. or less |
| First Copy Out Time4 |
4.1 sec. or less |
4.6 sec. or less |
5.3 sec. or less |
5.9 sec. or less |
6.9 sec .or less |
| Copy Speed (A4 Crosswise) |
55 ppm |
45 ppm |
36 ppm |
28 ppm |
22 ppm |
| Copy Magnification |
Fixed Same Magnification |
1:1± 0.5% or less |
| Scaling Up |
1: 1.154/1.224/1.414/2.000 |
| Scaling Down |
1: 0.866/0.816/0.707/0.500 |
| Preset |
3 types |
| Zoom |
25 to 400% (in 0.1% increments) |
| Lengthwise Crosswise Individual Settings |
25 to 400% (in 0.1% increments) |
| Paper Capacity(80g/m2) |
Tray 1 |
500 sheets (up to A3) |
| Tray 2 |
500 sheets (up to SRA3) |
| Multiple Bypass Tray |
150 sheets (up to SRA3) |
| Max. Paper Capacity (80g/m2) |
6,650 sheets |
3,650 sheets |
| Paper Weight |
Tray 1 / 2 |
52 to 256 g/m2 |
| Multiple Bypass Tray |
60 to 300 g/m2 |
| Multiple Copy |
1 to 9,999 sheets |
| Auto Duplex |
Type |
Non-Stack |
| Paper Size |
Width: 100 to 320 mm, Length: 148 to 457.2 mm |
| Paper Weight |
52 to 256 g/m2 |
| Power Requirements |
AC220 to 240 V 9 A (50 to 60 Hz) |
AC220 to 240 V 8 A (50 to 60 Hz) |
| Max. Power Consumption |
2.0 kW or less |
1.58 kW or less |
| Dimensions [W] × [D] × [H] |
615 × 685 × 898 mm (24-1/4″ × 27-1/2″ × 35-1/2″) |
615 × 685 × 771 mm (24-1/4″ × 27-1/2″ × 30-1/2″) |
| Weight |
Approx. 93 kg (205-1/4 lb) |
Approx. 76.5 kg (168-3/4 lb) |
| Space Requirements5 [W] × [D] |
937 × 1,246 mm (37″ × 49″) |
937 × 1,214 mm (37″ × 47-3/4″) |
|
1 S: Short edge feed  2 Set by Customer engineer3 May vary depending on the operating environment and usage.
4 A4 crosswise full size/using the first tray/scanning from the original glass surface.
5 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened. |
| |
| Print Specifications |
| Type |
Embedded |
| CPU |
SOC 800Mhz(DualCore) |
| Memory |
Shared with the copier |
| Print Speed |
Same as Copy Speed (when using the same original) |
| HDD |
250 GB (Shared witd tde copier) |
| Print Resolution |
1,800 dpi (equivalent) × 600 dpi (at smoothing) or1,200 dpi × 1,200 dpi (in 1,200 dpi mode) |
| PDL |
PCL5e/c Emulation, PCL6 (XL Ver. 3.0) Emulation,PostScript3 (3016) Emulation, XPS (Ver.1.0) |
| Protocol |
TCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP |
| Support OS |
Windows XP SP2 / XP SP2 64bit / Vista / Vista 64bit / 7 / 7 64bit /8 / 8 64bitWindows Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit / Server 2008 / Server 2008 64bit / Server 2008 R2 / Server 2012Mac OS 9.2 / X 10.2 / X 10.3 / X 10.4 / X 10.5 / X 10.6 / X 10.7 / X 10.8Linux |
| Fonts |
PCL |
80 Roman fonts |
| PS |
137 Roman Type1 fonts |
| Interface |
Ethernet (10BASE-T/100BASE-TX/1000BASE-T),
USB 1.1, USB 2.0, USB Host |
|
| |
| Scanning Specifications |
| Type |
Full-Colour Scanner |
| Interface |
Ethernet (10BASE-T/100BASE-TX/1000BASE-T) |
| Driver |
TWAIN Driver, HDD TWAIN Driver |
| Protocol |
TCP/IP (FTP, SMB, SMTP, WebDAV) (IPv4/IPv6) |
Scanning Speed (Colour/B&W)
(300 dpi, A4 Crosswise) |
Simplex: 80 opm
Duplex: 160 opm |
| Scanning Size |
Max. A3 (11″ × 17″) |
| Output Format |
TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS, OOXML (pptx, xlsx*, docx*), Searchable PDF*, PDF/A, Linearised PDF *Optional |
| Scanning Resolution |
Push |
200dpi / 300dpi / 400dpi / 600dpi |
| Pull |
100dpi / 200dpi / 300dpi / 400dpi / 600dpi |
| Main Functions |
Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB), Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home, Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan), Device Profile for Web Services (DPWS) |
| Other Functions |
Multi-Method Send, Authentication at the time of E-Mail send (SMTP authentication, POP before SMTP), S/MIME, Annotation |
|
| |
| Internet Fax |
| Protocol |
SMTP, POP |
| Connection Mode |
Full-Mode |
| Sending Paper Size |
A3, B4, A4 |
| Recording Paper Size |
Max. A3 |
| Resolution |
200 × 100 dpi, 200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi |
| Interface |
Ethernet (10BASE-T/100BASE-TX/1000BASE-T) |
| Colour |
Support Colour Internet Fax |
| Format |
Send: TIFF-F, Receive: TIFF-F ,Colour/Grey Scale: TIFF (RFC3949 Profile-C) |
|
| |
| Dual Scan Document Feeder * bizhub 554e/454e(Standard) bizhub 364e/284e/224e(Optional DF-701) |
| Type |
Single pass simultaneous duplex system |
| Support Paper Size |
A3 to A6S1, 11″ × 17″ to 5-1/2″ × 8-1/2″, Foolscap2 (8-1/2″ × 13-1/2″, 200 mm × 330 mm, 8-1/8″ × 13-1/4″, 8-1/2″ × 13″, 8-1/4″ × 13″, or 8″ × 13″), 8K, 16K |
| Mixed Size |
Support |
| Original Set |
Centre guide |
| Resolution |
600 dpi support |
| Support Paper Weight |
Simplex: 35 to 163 g/m2, Duplex: 50 to 163 g/m2,Mixed Original: 50 to 128 g/m2FAX Mode: 35 to 163 g/m2 (Simplex), 50 to 163 g/m2 (Duplex) |
| Paper Capacity |
Max. 100 sheets (80 g/m2) |
Productivity
(A4 Crosswise) |
Simplex |
Copy (Colour/B&W): 55 opm (600 dpi)Scan (Colour/B&W): 80 opm (300 dpi) |
| DuplexDuplex |
Copy (Colour/B&W):110 opm (600 dpi)Scan (Colour/B&W): 160 opm (300 dpi) |
| Power Requirements |
Supplied from the MFP main body |
| Max. Power Consumption |
74.5 W or less |
| Dimensions [W] × [D] × [H] |
611.2 × 503.6 × 130 mm (24″ × 19-3/4″ × 5″) |
| Weight |
Approx. 12 kg (26-1/2 lb) |
|
| 1 S: Short edge feed 2 Set by Customer engineer |
| |
| Fax Kit FK-511 (Optional) |
| Communication |
Super G3 |
| Compatible Lines |
Public Switch Telephone Network, Private Branch Exchange, Fax Communication Line |
| Line Density |
G3 (8 dot/mm × 3.85 line/mm, 600 × 600 dpi) |
| Modem Speed |
2.4 to 33.6 kbps |
| Compression |
MH/MR/MMR/JBIG |
| Sending Paper Size |
Max. A3 (Long Lengtd Support: Max.1,000 mm) |
| Recording Paper Size |
Max. A3 (Long Lengtd Max. 1,000 mm — following the page division —) |
| Transmission Speed |
Less than 3 sec. (A4, V.34, 33.6 kbps, JBIG) |
| Memory |
Shared witd the copier |
| Number of Abbr. Dials |
2,000 |
| Number of Program Dials |
400 |
| Number of Group Dials |
100 |
| Sequential Multiple Station Transmission |
Max. 600 |
|
| |
| IP Address Fax *Optiona Fax Kit FK-511 is required. |
| Protocol Transmission |
SMTP |
| Sending Paper Size |
A3, B4, A4 |
| Resolution |
200 × 200 dpi, 400 × 400 dpi, 600 × 600 dpi |
| Format |
Send: TIFF-F, Receive: TIFF-F,
Colour/Grey Scale: TIFF (RFC3949 Profile-C) |
|
| |

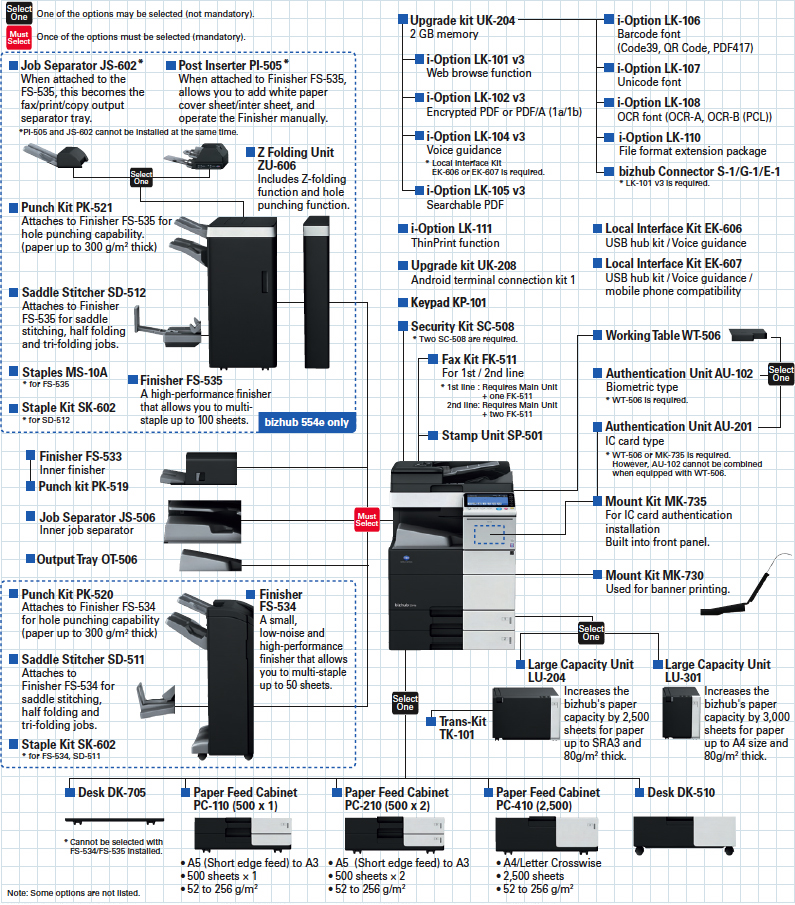

| System Options |
| bizhub 554e/454e |
 |
| |

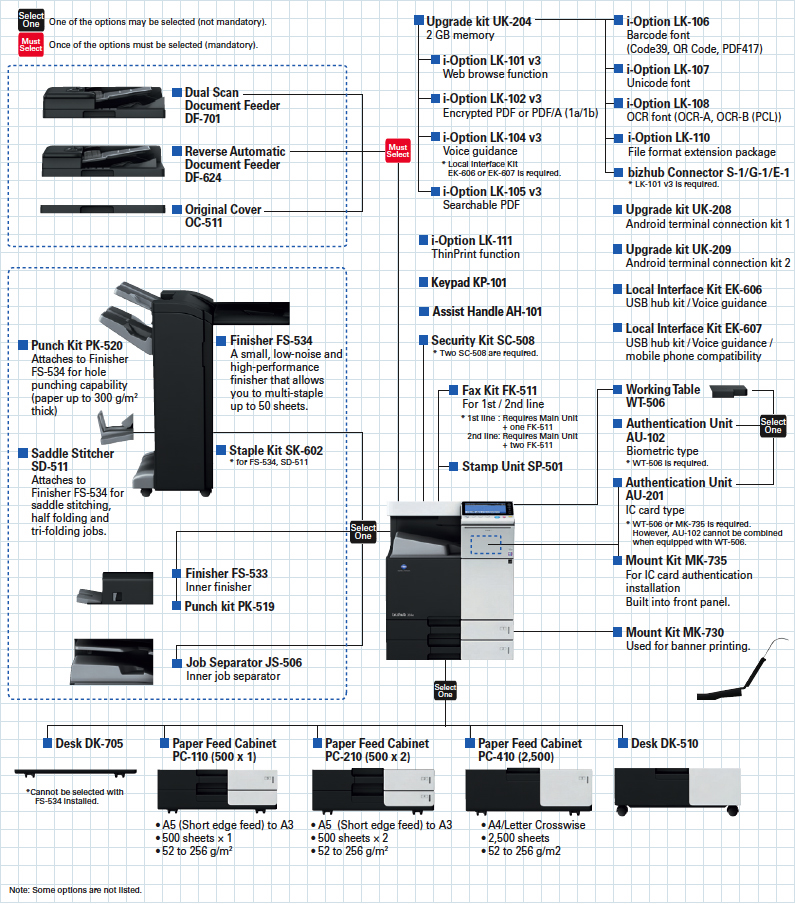

| bizhub 364e/284e/224e |
 |
| |
|
|
|
